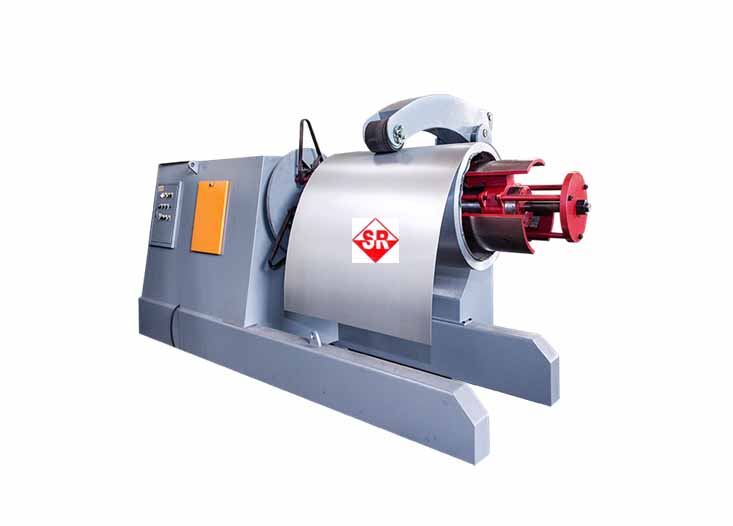

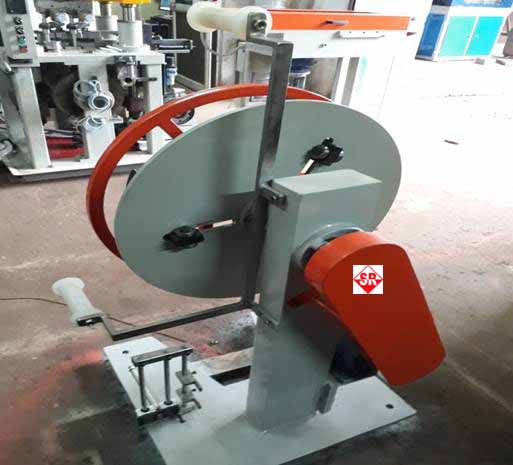

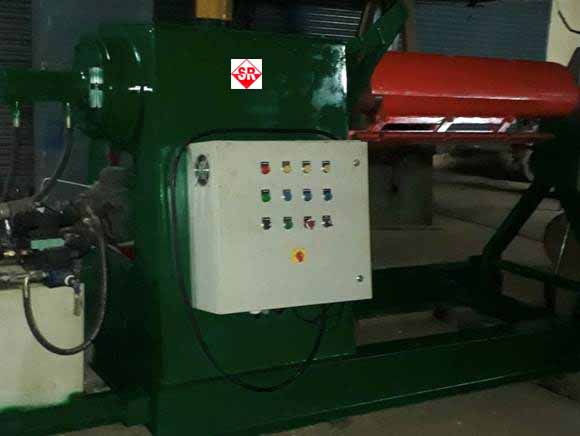

DECOILER

A Material handling machine located at the beginning of a production line . Decoiler used to hold and safely pay off or uncoil the steel strip . Coiler controls the speed and direction of the strip of metal and is sent to the line of processing , such as slitting or tube mill entry also roll forming entry. Decoiler is the action of unwinding a parent coil , making it flat and cutting it into sheets. We manufacture all kind of decoiler

types such as -

• Automatic sheet Uncoiler machine
• Automatic motorized uncoiler
• Automatic Decoiling Machine
• Automatic Uncoiler Machine
• Double head Mechanical Decoilers
• Horizontal mechanical Uncoilers
• Motorized Mechanical Decoilers

DECOILER Specification

• Capacity-
• Coil Width – upto 600 mm
• Coil Outer Diameter – upto 1700mm
• Coil Inner Diameter –508mm +/-30mm
• Speed- 15 Meters/min

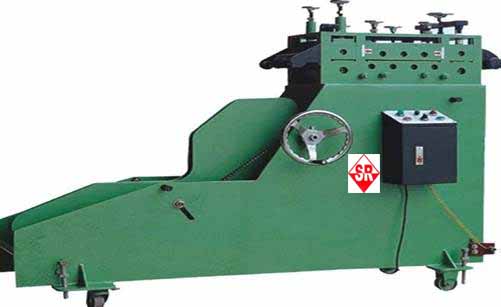

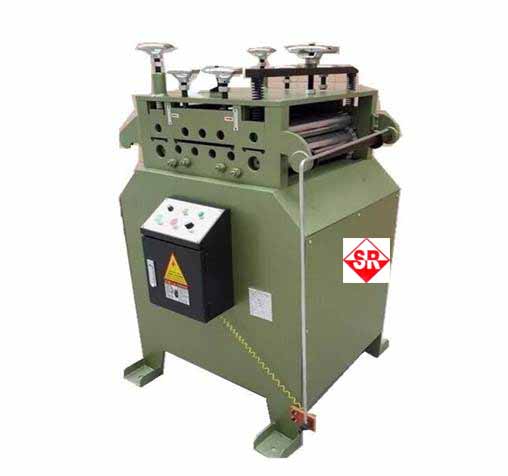

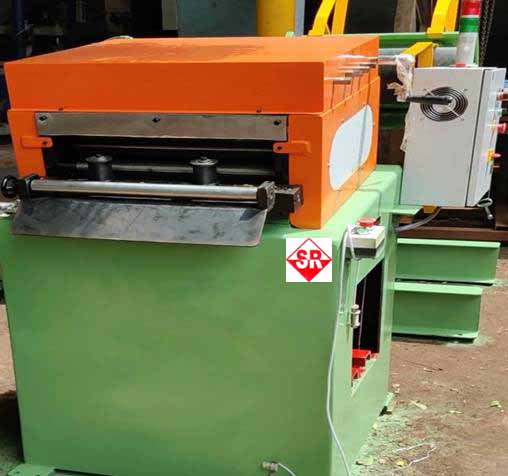

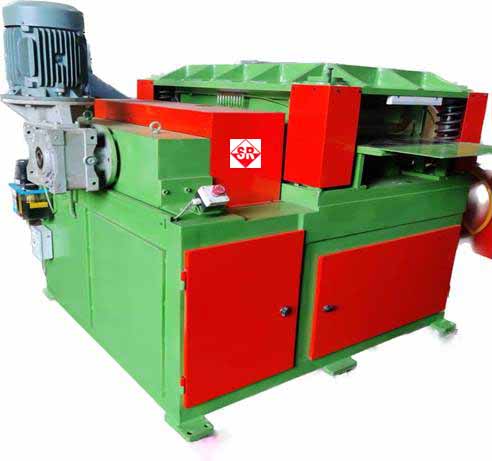

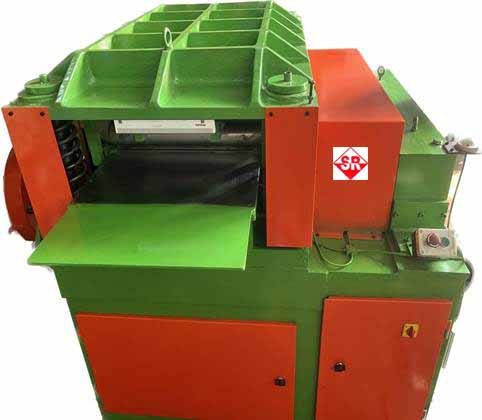

Straightening Machine

Straightening technology is S.R.Enterprises core area of expertise. With almost Four decades of experience, we supply reliable and precise Straighteners, feed leveling machines, and camber leveling units which ensure a high level of efficiency and productivity for your sheet metal processes. Our specialists provide detailed advice so you can invest in the right machine for your needs. On request, we can level your sheets or part blanks for you and carry out leveling trials at the S.R. Enterprises, which features Peak Performer part Straightening machines.

Straightening Machine Specifications

• Rollers- 11 Nos.
• Strip Thickness- upto 10mm
• Strip Width- upto 600 mm
• Speed- 15meters/min
• Individual Roller Adjustment

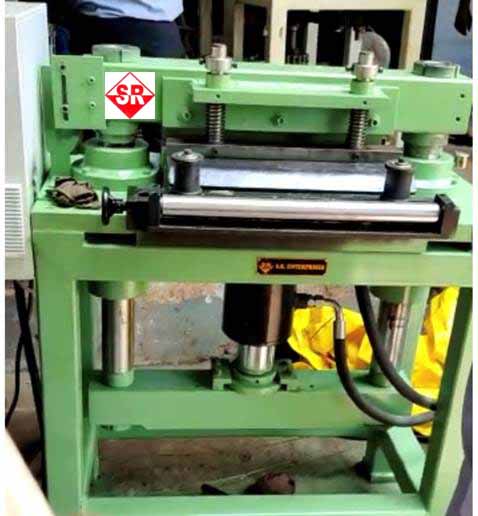

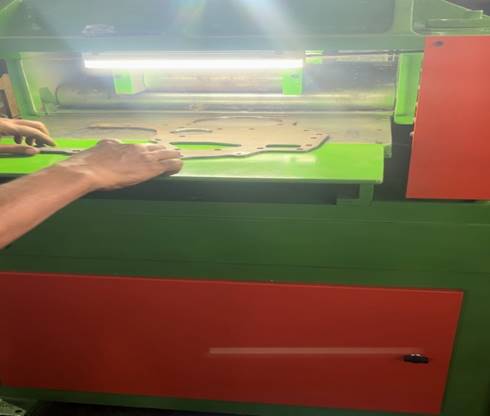

Hydraulic Chopper

Sheet Metal Cutting is a important process in many Industry segments. We Manufacture Auto-Feed Hydraulic Cutting machine. Hydraulic cutters utilize a hydraulic mechanism to close the scissors' hardened steel blades . The Hydraulic Chopping machine works with the help of hydraulic double acting cylinder. The piston is connected to the moving cutting tool. The cutter is a pair of hydraulically powered shears that is designed to cut through metal. . Sometimes specified as to their capacity to cut a solid steel bar, these are most commonly used to cut through sheet metal. Oil under high pressure is pumped to the movement mechanism to deliver enough power to cut even the hardest material

Hydraulic Chopper Specifications

• Hydraulic Powerpack –Upto 30 Ton
• PLC Electrical Control
• Width – 600mm
• Thickness- upto 5mm

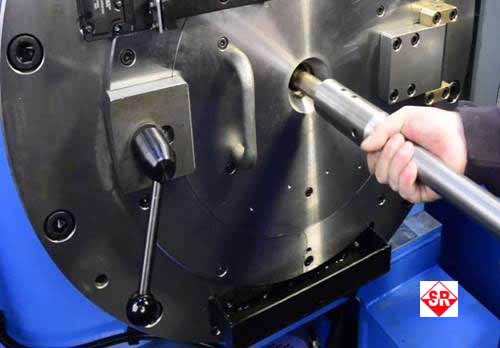

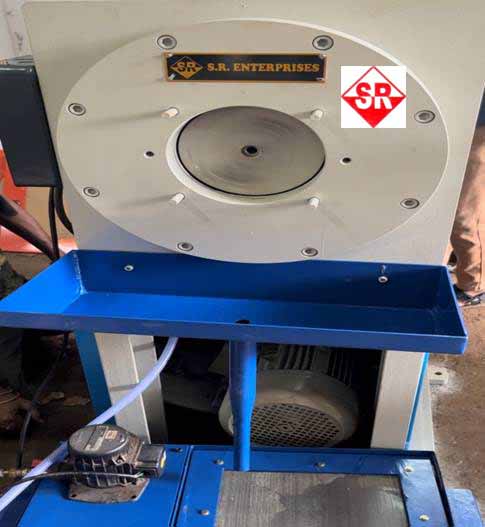

Swaging Machine

Rotary Swaging Machine is used for a special application of forging, by making hammer blows in quick succession the metal get formed on to the desired shape. This method has been widely recognised as one of the most economical way of forming. Rotary Swaging is widely used for the process which involves perfect circular forming of either tubes of solids. Since swaging forms the metal by displacing in to the desired shape there is a rare chance of scrap of the material. This is an advantage which hardly offered by any other process. After the swaging process the final product has a better grain structure, improved tensile strength and fine surface finish. The process is perfectly suitable with most of the design requirements.

Swaging Machine Specifications

• Maximum Diameter – upto 40mm
• Maximum Tube wall Thickness –upto 3mm
• Maximum Swaging Length – upto 350mm
• 1Set of Die as per Requirement
• Main Motor – 15HP
• Oil Pump –0.5 HP

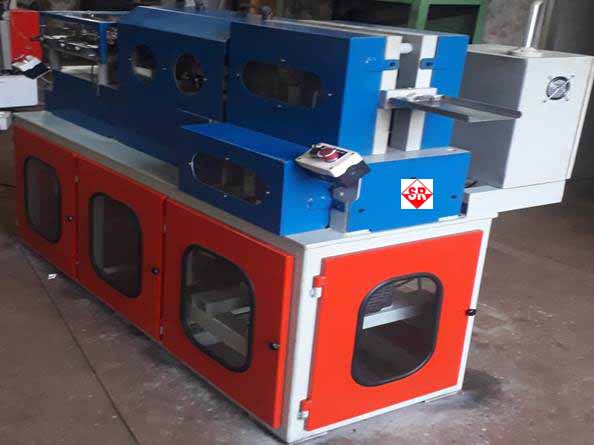

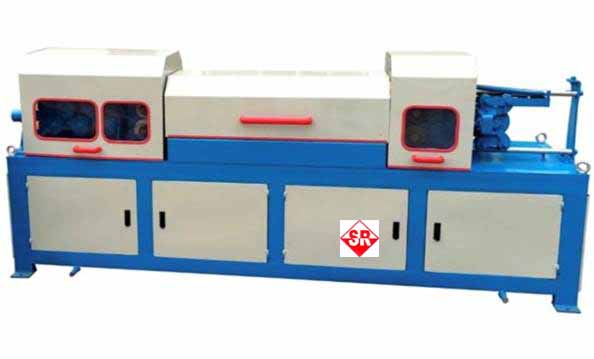

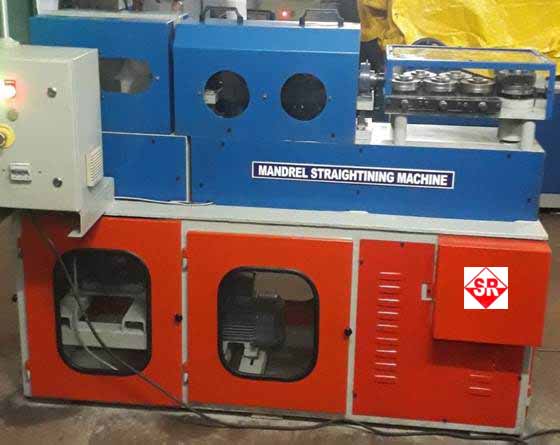

Mandrel Straightening Machine

Mandrel Straightening Machine recycles bent or bowed mandrels through an automated straightening process. The Mandrel Straightening Machine has been configured for use with bare and coated stainless steel mandrels of various diameters and lengths with no need for tooling change. The Mandrel Straightening Machine features the PLC control system allows for easy recipe setup, product change over, and precise control of the straightening process. Mechanical setup of the Mandrel Straightening Machine is recipe driven and automatically configured based on process parameters for any given mandrel diameter

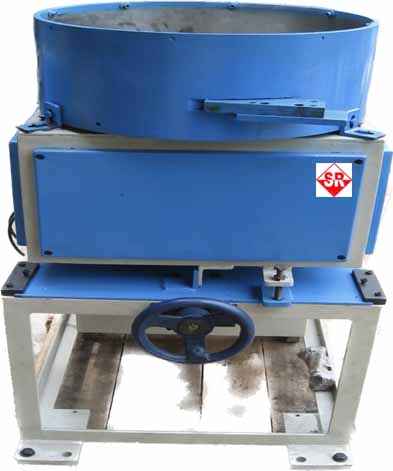

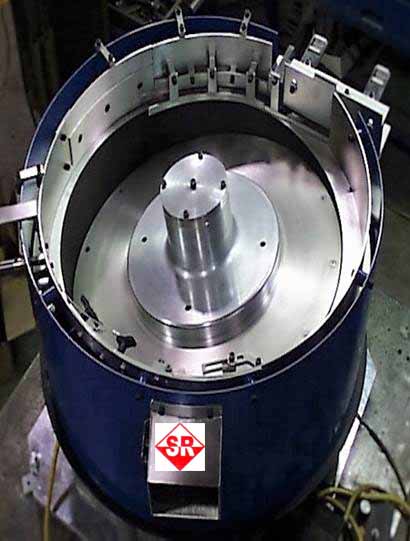

Centrifugal Hoppers

S.R Enterprises has developed a range of high quality feeders for efficient feeding of products with complex shapes. Our centrifugal feeders are highly claimed for their ability to feed and orient parts at high rates that cannot be matched by other types of parts feeders. When the requirement arises for very high speed orientation and feeding of parts, then the only alternative is to go for a Rotary or Centrifugal Hopper . Hoppers are perfect for parts that are relatively small and easily oriented. Parts are brought out of the drum on the linear tooling, which also hold parts in back-pressure to serve as a buffer. These Hoppers can help achieve speeds of upto 50 meters per minute

Centrifugal Hoppers Specifications

• Worm Reduction Gear Motor
• Variable Frequency Drive Unit

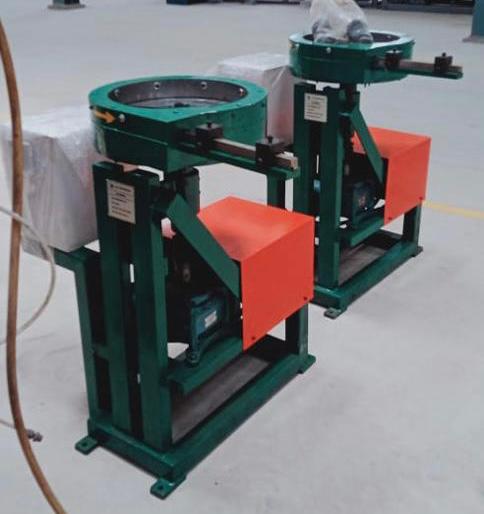

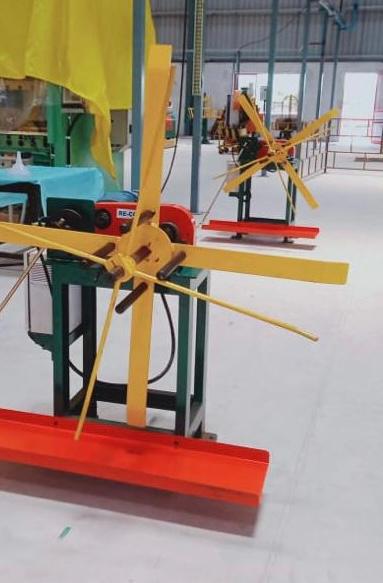

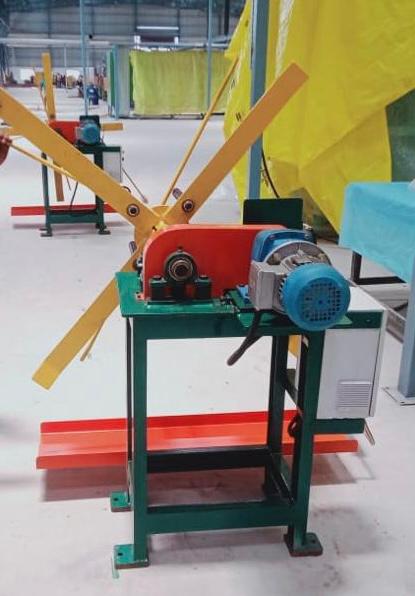

Recoiling machine

Recoiling machine was designed to recoil the sheet for ease of handling and smooth running of the machine. We can develop different models according to the load. These recoiled stands are mechanized to match the speed of the press
